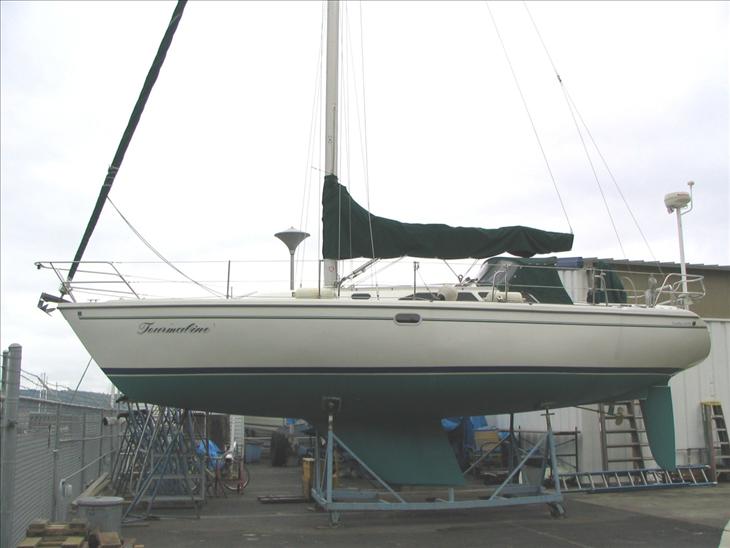

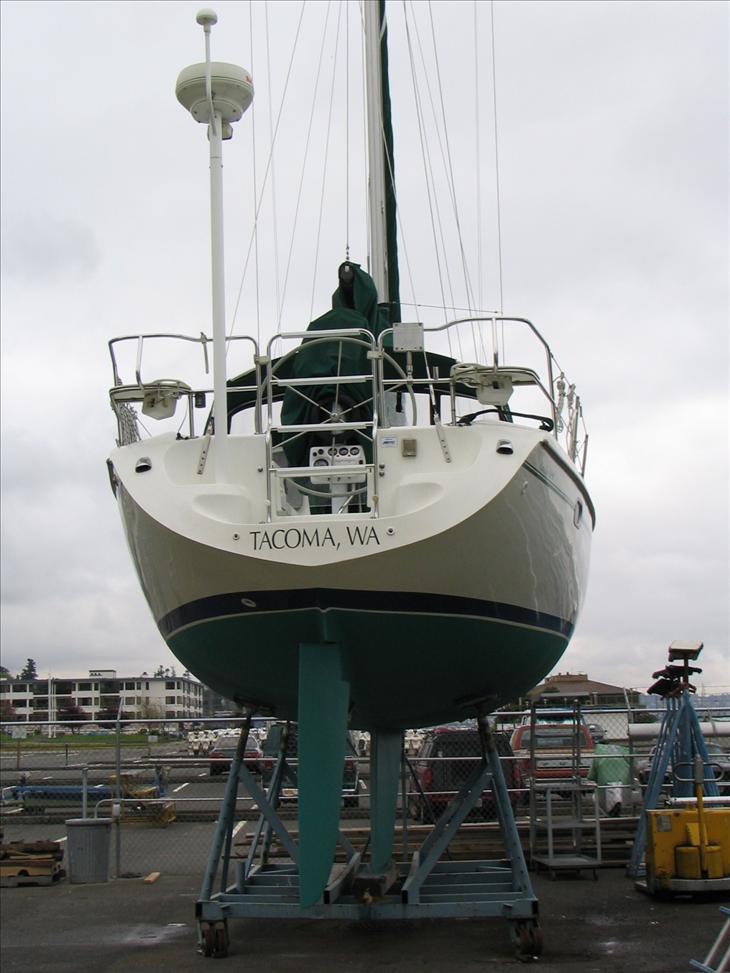

Hull # 1833 of Catalina 36 Mark II (mfg. 9/1999)   2000 model



Dimensions:  length overall 36’ 4”

                          length at waterline 30’ 3”

                          beam 11’ 11”

                          draft  5’ 10”

                          ballast  6000 lbs

                          displacement  13,500 lbs



Engine:          Universal Diesel model M-35 (35 HP)



Prop:               Max prop 13 inch 3 blade



Tankage:        fuel  25gal          water  82 gal          holding  17 gal



Sails:               full batten main sail with lazy jacks

                         155% furling Genoa on roller furling

                         Cruising spinnaker



Electronics:    shore power 30 amp

                         batteries 6 Trojan golf cart 12 amp in parallel series

                          40 amp Xanex smart charger

                          2000 watt inverter and Link 10E meter



Navigation Equipment:

                         Ray Marine E120 GPS/ chart plotter (new 2009)/ AIS included

                         Ray Marine E80 GPS/ chart plotter at helm (new 2009)

                         Ray Marine HD radar with post in stern (new 2009)

                         Ray Marine ST6002 Auto Pilot (new 2009)

                         Icom VHF (new 2009)

                         Raytheon ST60 knot meter

                         Raytheon ST60 depth sounder

                         Raytheon ST60 wind indicator





Heating:         Espar D5 Hydronic hot water heat

                        2 burner propane stove/oven replaced 2014

                        Hot water tank 6 gal. with pressure system

                        Refrigeration: Alder-Barbour 12 amp refr. / ice cube freezer



Anchor:           Plow anchor with 250’ chain

                         Maxwell 12 amp power anchor windlass



Rigging:         stainless steel wire with anodized aluminum mast / boom

                        4 self tailing winches

                        Garhauer back cars + outside track cars



Compass:       Ritchie



Stereo:            Nacamichi AM/FM/CD, remote cockpit speakers

TV/ DVD          Toshiba 22” flat screen / built in DVD/ cable fitting thru cabin wall

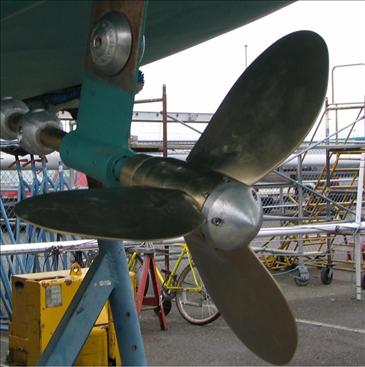

Max Prop (inset) replaced fixed prop to decrease
drag and increase reverse power with minimal
prop walk.
